QuadCore® KS Shadowline Interior

Cold Storage Panel Systems

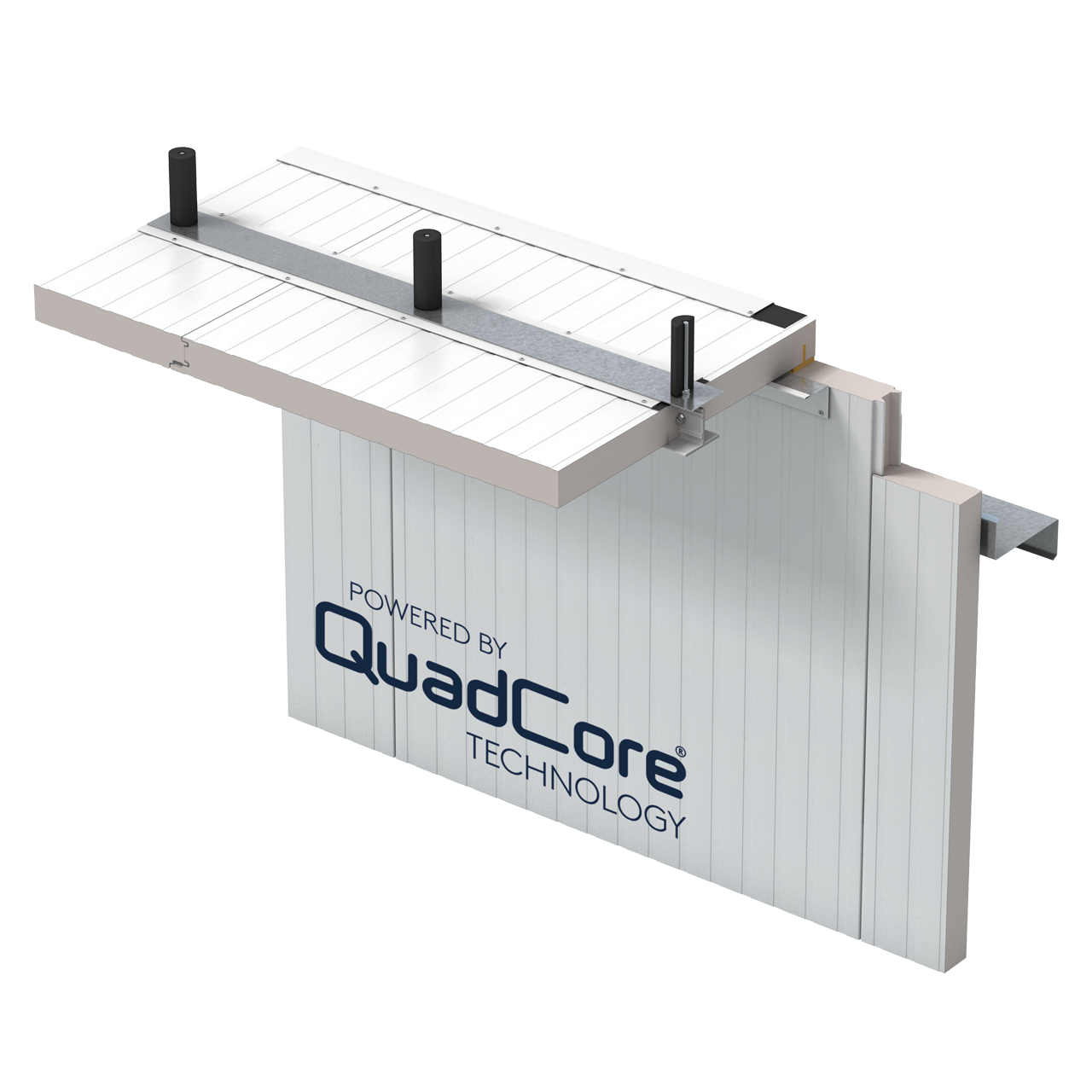

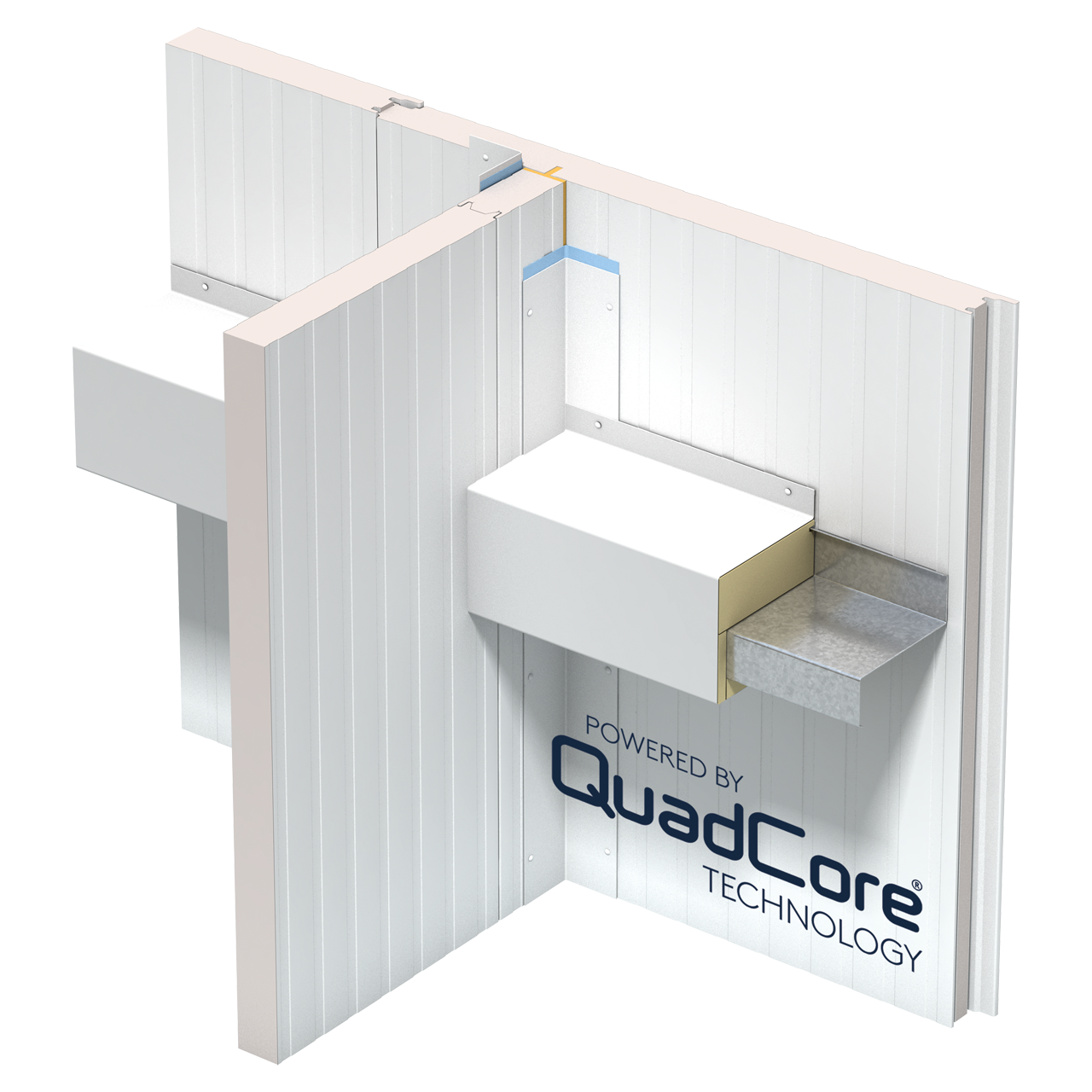

QuadCore KS Shadowline Interior panels are applicable for both wall and ceiling conditions in data centers, technology facilities, food processing plants, controlled environments, and medical pharmaceutical facilities. The superior engineered joint assures a tight, well-designed vapor barrier in enclosures of any size.

Product Highlights

  • Available in an 8 inch panel thickness
  • R-values up to R-64
  • Imperial White standard finish meets USDA guidelines
  • 45 3/8” module width aides in faster installation and quicker building close-in
Find a Sales Rep

Technical Information

Profile Exterior: Shadowline
Interior: Shadowline
Embossing Exterior: Stucco or non-embossed
Interior: Stucco or non-embossed
Gauge Exterior: 26, 24, 22 ga
Interior: 26, 24, 22 ga
Width 45 3/8"
Thickness 2”, 2 3/4”, 3”, 4”, 5”, 6”, 8”
Length 8’ - 53’
Reveal option N/A
Orientation Vertical
Post fabrication N/A
Insulation Core R-value
QuadCore ≈ 8 per inch per ASTM C518 @ 75˚F mean temperature
≈ 9 per inch per ASTM C518 @ 35°F mean temperature
Test Procedure Results
Fire FM 4880 Passed: Class 1 Fire Rating of Building Panels or Interior Finish Materials*
FM 4882 Passed: Smoke Sensitive Occupancies Interior and Exterior Use*
ASTM E84 Flame Spread: 25 or Less / Smoke Developed: 90 or Less
CAN/ULC-S102 Flame Spread: 20, Smoke Developed: 45 for panel insulation core
CAN/ULC S138 Passed: Fire growth of foamed plastic insulated building panels in a full scale room configuration
NFPA 259 Tested for potential heat of building materials
Structural ASTM E72 Vacuum chamber tested. Panel load / span and deflection tables are available
Thermal Transmission ASTM C518
Thermal Performance at 35° F Mean Temperature   Thermal Performance at 75° F Mean Temperature
Thickness R-Value Thickness R-Value
2 18 2 16
2.75 24.75 2.75 22
3 27 3 24
4 36 4 32
5 45 5 40
6 54 6 48
8 72 8 64
Bond Strength ASTM D1623 Panels tested for tensile bond strength of metal to foam
Sample placed in an autoclave device and pressurized to 2 PSI at 218°F for 2½ hours
Skin Delamination
No skin delamination with direct pull off pressure up to 1188 psf
Regional Approvals City of LA (LADBS)
CCRR 0567; FB 3080


*Thickness: 2”-8”, Width: 45”, Min. panel length: 8’, Min. gauge: Exterior 26 ga, Interior 26 ga.
For FM compliance, systems must be installed in accordance with FM installation specifications as detailed on ApprovalGuide.com.
Please contact technical.NA@kingspanpanels.com for detailed information or refer to ApprovalGuide.com.

Standard Material Workmanship & Standard Finish Warranties

At Kingspan, we understand the unique challenges that design and construction professionals face every day. To do our part in meeting these demands, Kingspan products are offered with our team’s guidance and technical expertise, followed up after construction is completed with our product warranties:



  • 2 year standard material workmanship warranty
  • Up to 20 years standard finish warranty



QuadCore 30-Year Thermal Warranty

Only available on QuadCore-equipped panels

​The industry’s longest thermal performance warranty. The inimitable science behind QuadCore Technology and comprehensive independent third-party testing has delivered the industry an unparalleled 30-year thermal performance warranty.
