QuadCore® Designwall 4000
BENCHMARK ARCHITECTURAL WALL PANELS
Designwall 4000 is the go-to panel choice for large scale projects. Available in either embossed or non-embossed, Designwall 4000 is uniquely equipped to offer the finest design ingenuity.
Product Highlights

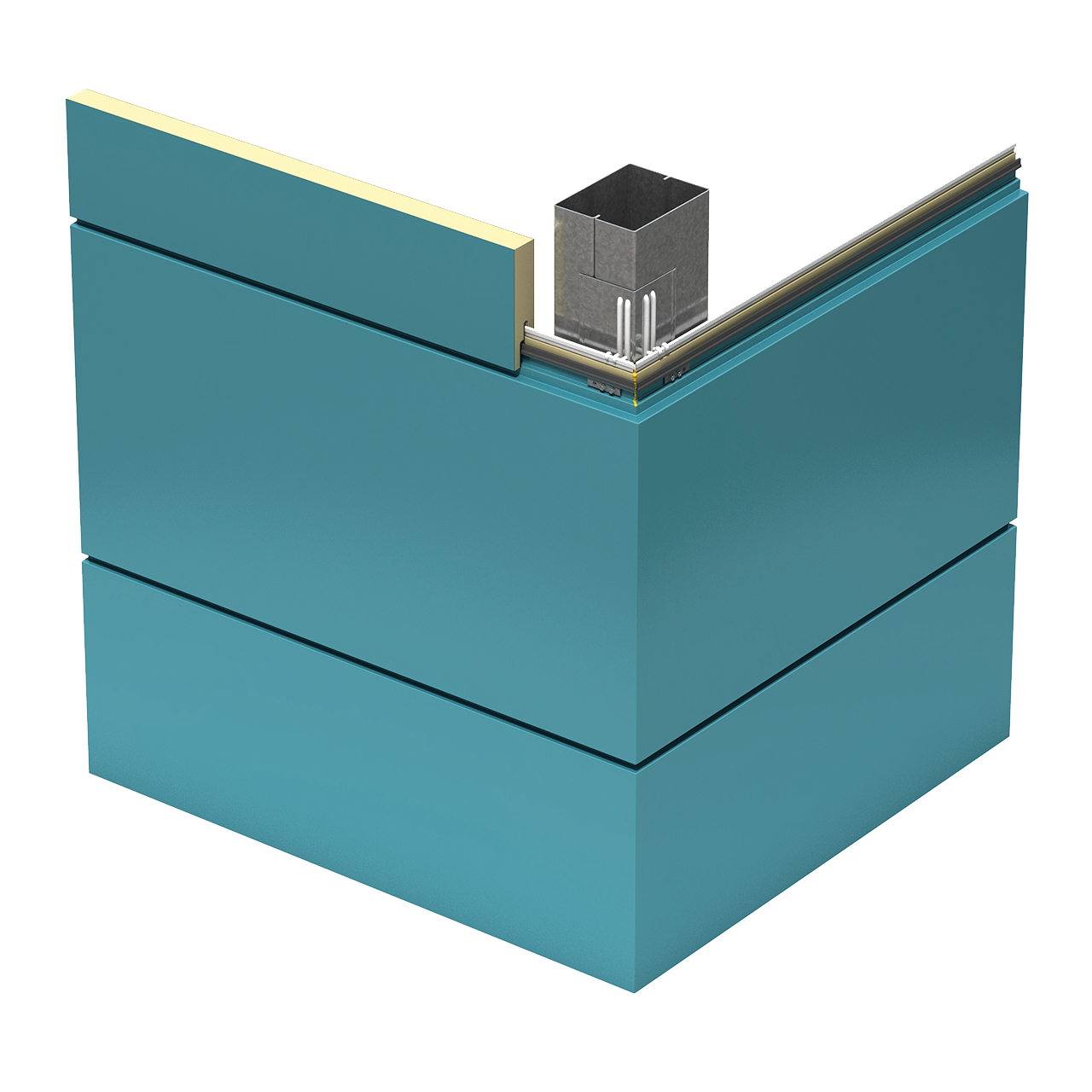

- Double transverse bent corners create integrated column covers
- Available in thicknesses up to 4” thick providing exceptional thermal performance and continuous foam-to-foam contact

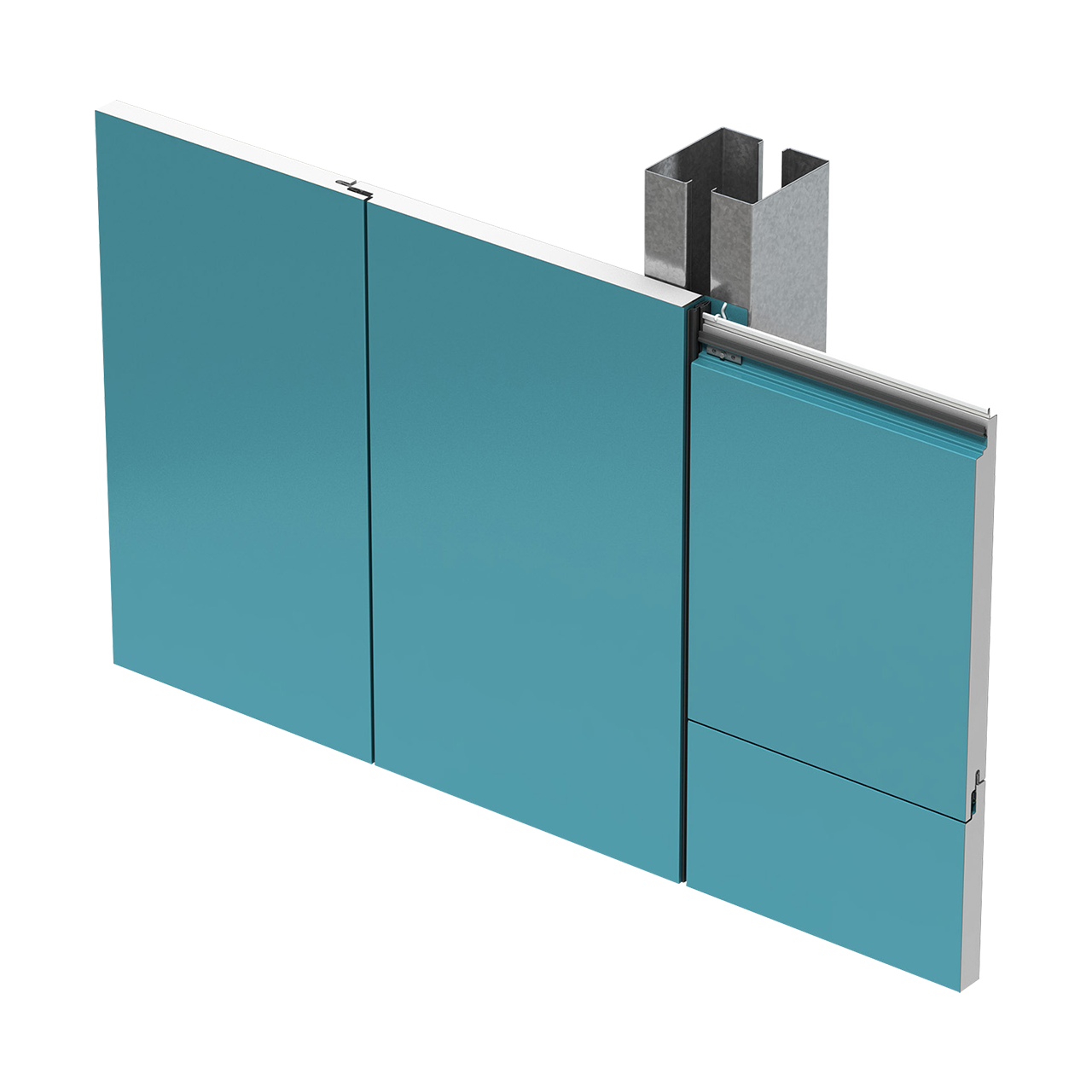

- Can be installed horizontally or vertically depending on design parameters
- Designwall R Series panels can be used alongside Designwall 4000 to provide a bold, profiled look
- GREENGUARD Gold Certified
Designwall 4000 is available with QuadCore
Kingspan's next-gen insulated foam core, with R-values up to 8 per inch. This innovative core with its distinctive gray microcells powers the global industry’s highest combined performance, delivering excellent thermal performance, fire protection, health & wellness certification and a 30-year thermal warranty.
Technical Information
| Insulation core | QuadCore Technology |
| Profile | Exterior: Flat Interior: Flat |
| Embossing | Exterior: Stucco or non-embossed Interior: Stucco or non-embossed |
| Gauge | Exterior: 22, 20 ga Interior: 24, 22 ga |
| Width | 24” – 42” (1/2” increments) |
| Thickness | 2”, 2.5”, 3”, 4” |
| Length | 2’ - 24’ |
| Reveal options | ⅛”, 1/2", 1”, 2”, 3” |
| Orientation | Vertical or horizontal |

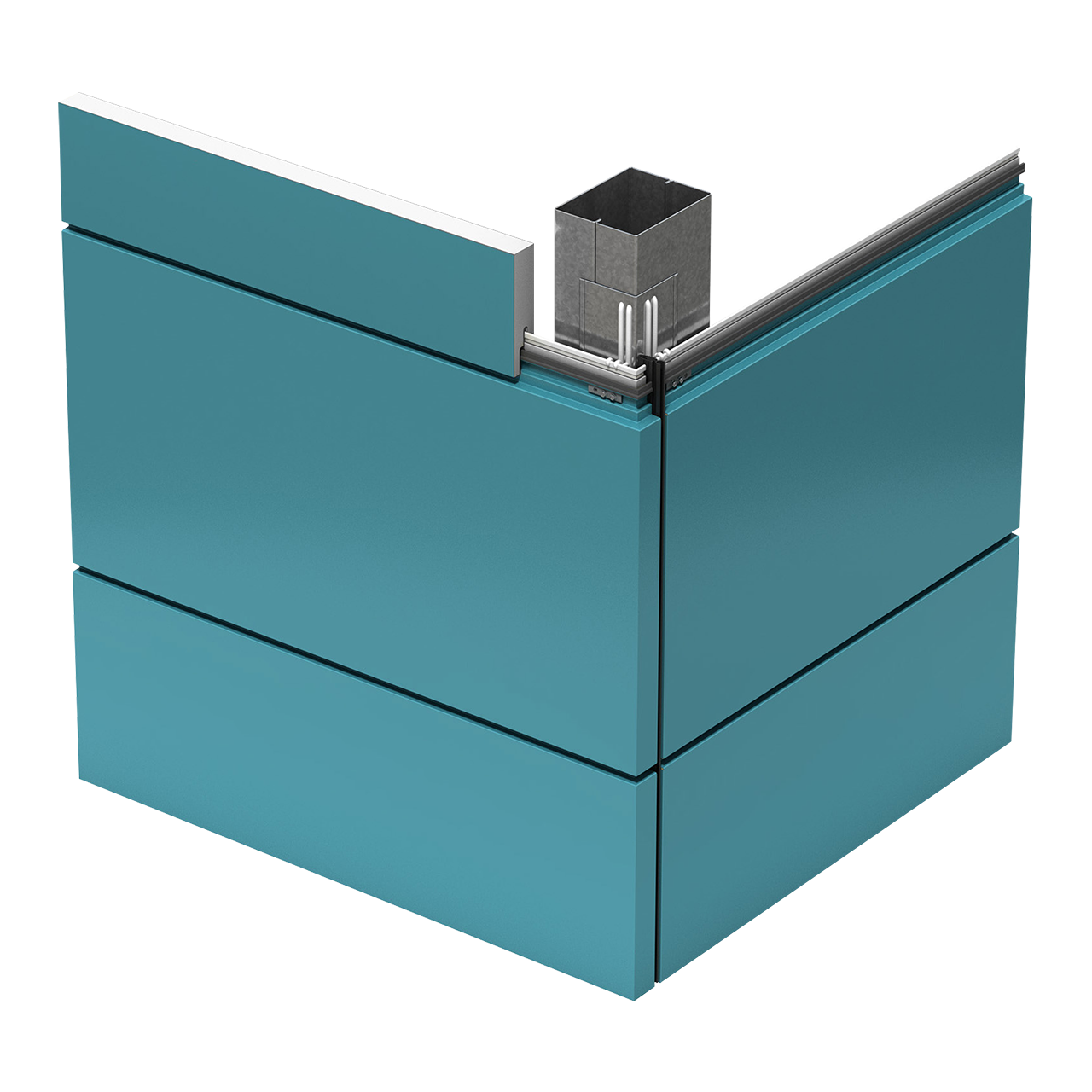

| Post Fabrication | Transverse bend, trimless end (Manufacturing limitations apply. Please contact us for detailed information) |
| Production method | Continuous production line |
| Insulation Core | R-value |
| QuadCore | ≈ 8 per inch per ASTM C518 @ 75˚F mean temperature ≈ 9 per inch per ASTM C518 @ 35˚F mean temperature |
| Test | Procedure | Results | |||||||||||||||||||||||||
| Fire | FM 4880 | Passed: Class 1 Fire Rating of Building Panels or Interior Finish Materials* | |||||||||||||||||||||||||
| FM 4882 | Passed: Smoke Sensitive Occupancies Interior and Exterior Use* | ||||||||||||||||||||||||||
| ASTM E84 | Flame Spread: 25 or Less / Smoke Developed: 90 or Less | ||||||||||||||||||||||||||
| CAN/ULC-S102 | Flame Spread: 20, Smoke Developed: 45 for panel with facings | ||||||||||||||||||||||||||
| CAN/ULC S138 | Passed with FR gaskets or butyl sealant: Fire growth of foamed plastic insulated building panels in a full scale room configuration | ||||||||||||||||||||||||||
| CAN/ULC S134 | Passed with FR gaskets or butyl sealant: Standard method of test for fire of exterior wall assemblies | ||||||||||||||||||||||||||
| NFPA 259 | Tested for potential heat of building materials | ||||||||||||||||||||||||||
| NFPA 268 | Passed: Standard Test Method for Determining Ignitability of Exterior Wall Assemblies Using a Radiant Heat Energy Source | ||||||||||||||||||||||||||
| NFPA 285 | Passed: Standard Fire Test Method for Evaluation of Fire Propagation Characteristics of Exterior Non-Load-Bearing Wall Assemblies Containing Combustible Components | ||||||||||||||||||||||||||
| Structural | FM 4881 | Passed: For complete wind pressure ratings please contact Kingspan Technical Services or refer to * | |||||||||||||||||||||||||
| ASTM E72 | Vacuum chamber tested. Panel load / span and deflection tables are available | ||||||||||||||||||||||||||
| Thermal Transmission | ASTM C518 |
|
|||||||||||||||||||||||||
| Air Infiltration | ASTM E283 | 0.01 CFM/ft2 air infiltration rate at 20 psf. | |||||||||||||||||||||||||
| Water | ASTM E331 | No uncontrolled water penetration at 20 psf differential pressure. No water penetration at 6.24 psf pressure differential for a two (2) hour duration. | |||||||||||||||||||||||||
| AAMA 501.1 | Dynamic water pressure testing – no sign of water leakage at 15 psf | ||||||||||||||||||||||||||
| Regional Approvals | City of Los Angeles | CCRR 1037; FB 3080 (max. width = 36”) | |||||||||||||||||||||||||
| Florida Product Approval | FL 46087.1 (max. width = 36”) | ||||||||||||||||||||||||||
| Miami-Dade Listing | NOA 25-0801.02 (max. width = 36”, max. reveal = 1/2") | ||||||||||||||||||||||||||
| Texas Department of Insurance (TDI) | NOA 25-0801.02 (max. width = 36”, max. reveal = 1/2") | ||||||||||||||||||||||||||
| SFM 12-7A-1 (Brushfire) | Intertek Spec ID: 58965 | ||||||||||||||||||||||||||
| City of Houston | Registration #710A | ||||||||||||||||||||||||||
| IAS AC473 | Certificate MB-277-B | ||||||||||||||||||||||||||
*Thickness: 2”-6”, Width: 24”-42”, Min. panel length: 8’, Min. gauge: Exterior 26 ga, Interior 26 ga.
For FM compliance, systems must be installed in accordance with FM installation specifications as detailed on ApprovalGuide.com.
Please contact technical.NA@kingspanpanels.com for detailed information or refer to ApprovalGuide.com.
Standard Material Workmanship & Standard Finish Warranties
At Kingspan, we understand the unique challenges that design and construction professionals face every day. To do our part in meeting these demands, Kingspan products are offered with our team’s guidance and technical expertise, followed up after construction is completed with our product warranties:
- 2 year standard material workmanship warranty
- Up to 20 years standard finish warranty
QuadCore 30-Year Thermal Warranty
The industry’s longest thermal performance warranty. The inimitable science behind QuadCore™ Technology and comprehensive independent third-party testing has delivered the industry an unparalleled 30-year thermal performance warranty.
Contact your sales representative for information regarding our optional warranty programs.
Downloads
- QuadCore Designwall 4000 LOD300 BIM Objects ZIP
- BENCHMARK Color Chart PDF
- BENCHMARK Design Guide - The Art of Architectural Panels PDF
- BENCHMARK Product Portfolio PDF
- Data Center Solutions Guide PDF
- Kingspan Panels Maintenance Manual PDF
- Designwall 4000 QuadCore® Data Sheet PDF
- Designwall 4000 CSI Masterformat Specification PDF
- Designwall 4000 CSI Masterformat Specification DOCX
- Designwall 4000 Horizontal CAD Details PDF
- Designwall 4000 Vertical CAD Details PDF
- Designwall Installation Guide PDF
- QuadCore Warranty PDF
- Designwall Series Weight Table PDF
- QuadCore Designwall 4000 Span Table 1/8” Steel PDF
- QuadCore Designwall 4000 Span Table 12ga PDF
- QuadCore Designwall 4000 Span Table 14ga PDF
- QuadCore Designwall 4000 Span Table 16ga PDF
- Reducing the Embodied Carbon of Walls in Industrial Buildings PDF
Frequently Asked Questions
The R-value of insulated metal panels depend entirely on the insulated foam core used. PUR is typically 5-7.1 per inch, while PIR is typically in the 7-7.2 per inch range. The insulation core with one of the highest R-values is QuadCore®, with an R-value of 8.0 per inch.
Because of this, most insulated metal panels have an R-value of R-5 to R-64, with panels ranging from 1 inch thick to 8 inches thick. With Kingspan's QuadCore®, R-values can reach as high as R-72.
Designwall series insulated panels manufactured in North America use either PIR or QuadCore® insulation foam, with R-values starting at 5.8 per inch for PIR and at 8.0 per inch for QuadCore®. These thermal resistance R-values are quoted at 75°F.
For cold storage applications, we offer insulated panels with R-values of up to 9.0 per inch, as measured at 35°F.
While PIR and PUR have been used for decades, there’s another advanced insulation that outshines both in fire protection and thermal performance: Kingspan’s QuadCore Technology.
With 11 percent better thermal performance than PIR and up to 60 percent improvement over PUR, it is unrivaled in the market. Its fire resistance meets the highest insurance and regulatory standards.
As we continue to look for building solutions that are energy efficient, QuadCore is the newest generation of insulation technology in a family of innovation to keep us safe, warm and dry.
All Kingspan panels manufactured in North America have been thoroughly evaluated by independent third-party testing laboratories for building code compliance and are covered under various product approval listings.
In addition, Kingspan insulated panels carry a range of third-party verified Environmental Product Declarations (EPDs) and material health and transparency certifications for products offered in North America. To view our product sustainability certifications, please visit our certification page.
For full testing specifications, please refer to our testing chart on individual product page or contact our Technical Services department.
Insulated metal panels are exterior roof and wall panels that are comprised of two pieces of steel skin with insulation foam in the middle.
The insulated foam core can range from a variety of material, but the most common options are PUR (polyurethane), PIR (polyisocyanurate), and QuadCore® (self-blended hybrid insulation core).
